Excellent Cuttability Fiberglass Rebar

It should be noted that when cutting glass fiber reinforced bars, attention should be paid to safety, to avoid dust and other harmful substances, and the accuracy and quality of cutting must be guaranteed, otherwise the use effect and safety may be affected.

Inquiry now

Product Details

Products Description:

FRP (Fiber Reinforced Polymer) rebars are a type of reinforcement bar used in construction that is made of composite materials consisting of high-strength fibers embedded in a polymer matrix. FRP rebars offer several advantages over traditional steel reinforcement, including higher strength-to-weight ratio, corrosion resistance, and non-magnetic properties.

Feature:

High Tensile Strength: The load is approximately double that of a steel bar with the same diameter

Low Weight: The labor intensity is greatly reduced, and the transportation cost is reduced at the same time;

Anti static: It has noelectrical conductivity, and no sparks will be produced when being cut. It is particularly suitable for high gas zones;

Non-flammable: It is non-flammable and has high thermal insulation;

Cuttability: It avoids damages to cutter heads,and does not delay excavation

Save cost: Use this material as reinforcing bars for road and bridge, could reduce Secondary repair cost.

Product Specification

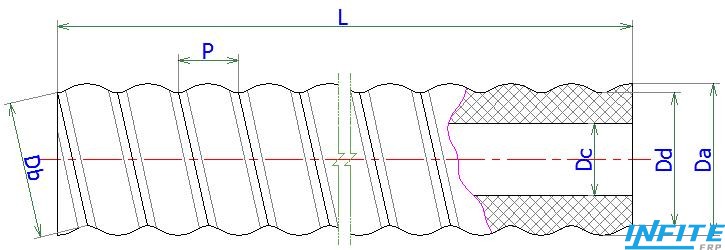

Specification	yft100-25-12	Name	Hollow Rockbolt

Item	Unit	Permissible Deviation	Standard Parameter
Outer Diameter (Da)	mm	±0.5	25
Measure Bottom Diameter (Db)	mm	±0.5	22.6
Diameter of the hole	mm	±0.5	12
Effective Diameter (Dd)	mm	±0.5	22
Screw Pitch (P)	mm	±0.2	10
Rod Length (L)	mm	±10
Active Section	mm²	—	267
Weight	g/m	±25	640
Fiberglass Content	%	±5	80
Density	g/cm³	±0.1	2
Ultimate Load-bearing	kN	≥	220
Ultimate Tensile Strength	MPa	≥	820
Shear Strength	MPa	≥	150
Elastic Modulus	GPa	≥	40
Ultimate Strain	%	≥	1.2
torsional strength	N·m	≥	100
Nut bearing capacity	kN	≥	100
