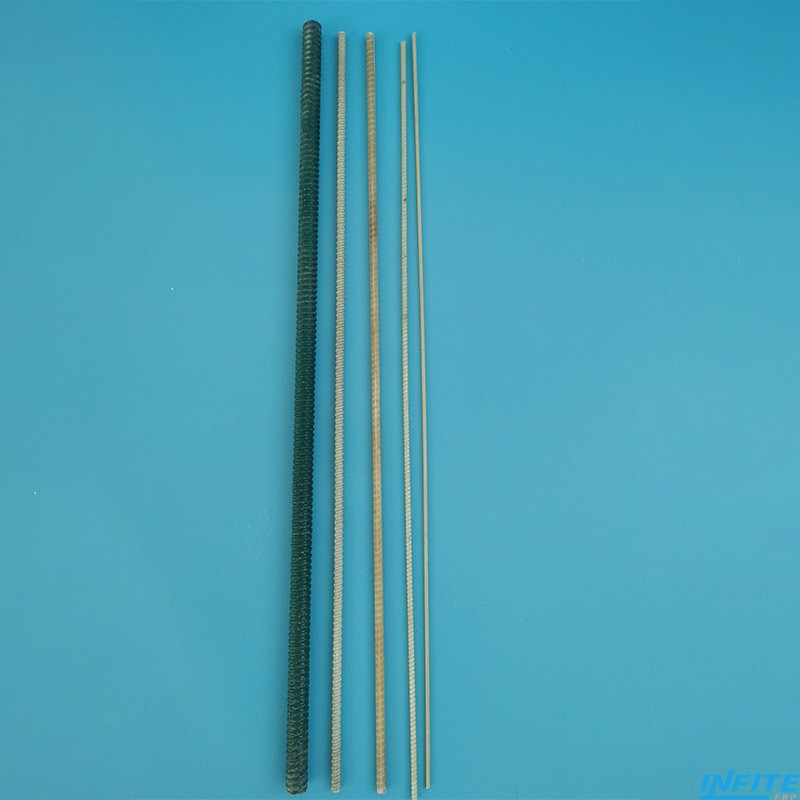

High Tensile Strength GFRP Bars

GFRP bars are anti-corrosive materials that allow constructing any element with keeping the minimum cover in severe or extremely severe environmental conditions. GFRP bars are available in every standard size.

Inquiry now

Product Details

Products Description:

GFRP rebar are tendons made of resin and high-strength fiberglass composite materials. It is a building material with light weight, high strength, flame retardant, corrosion resistance and insulation properties. GFRP bars are widely used in concrete structure reinforcement, geotechnical engineering, marine engineering, bridge engineering, water conservancy engineering, mining and other fields, and can meet the requirements of the electrical field, such as cable supports.

GFRP Bars Advantages:

1. Light weight: GFRP bars weigh only about 1/4-1/5 of the same specifications as steel bars, which greatly reduces the self-weight load of concrete structures.

2. Corrosion resistance: Unlike steel bars, GFRP bars will not be affected by moisture, acid, alkali, salt, etc., and other corrosive environments, and will not rust or wear.

3. Good insulation: GFRP bars have good insulation properties, which can eliminate the current path in the concrete structure and prevent the formation of electrochemical effects.

4. Good plasticity: GFRP bars have good plasticity and can meet the needs of various complex structural parts.

5. High tensile and compressive strength: The tensile and compressive strength of GFRP bars is higher than that of ordinary steel bars, which can improve the force bearing capacity of the structure.

Product Specificatin
Specification	yft100-10	Name	GFRP Rebar

Item	Unit	Permissible Deviation	Standard Parameter

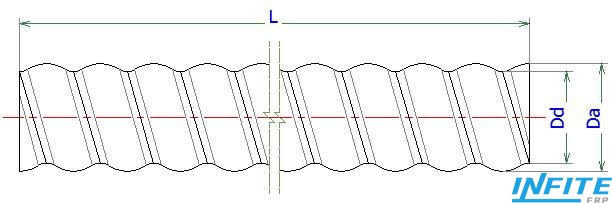

Outer Diameter (Da)	mm	±0.5	10
Effective Diameter (Dd)	mm	±0.5	9
Rod Length (L)	mm	±10
Active Section	mm²	—	64
Weight	g/m	±5	150
Fiberglass Content	%	±5	80
Density	g/cm³	≥	2
Ultimate Load-bearing	kN	≥	60
Ultimate Tensile Strength	MPa	≥	1000
Shear Strength	MPa	≥	150
Elastic Modulus	GPa	≥	145
Ultimate Strain	%	≥	1.2
