High Strength Insulation Fully Threaded GFRP Rock Bolts

GFRP rock bolts are a type of reinforcement used in geotechnical engineering and mining applications. It has the characteristics of light weight, high strength, insulation and corrosion resistance.

Inquiry now

Product Details

Product Description:

GFRP rock bolts are designed to provide stability and support for rock masses, tunnels, slopes and other underground or excavated structures; The surrounding rock mass is bonded. Under the interaction between the FRP bolt and the surrounding rock, the stress state of the surrounding rock is changed, the overall stiffness of the rock mass is improved, and the deformation resistance and bearing capacity of the rock mass are enhanced.

We can produce solid GFRP rock bolts and hollow GFRP rock bolts to meet your different requirements.

Feature:

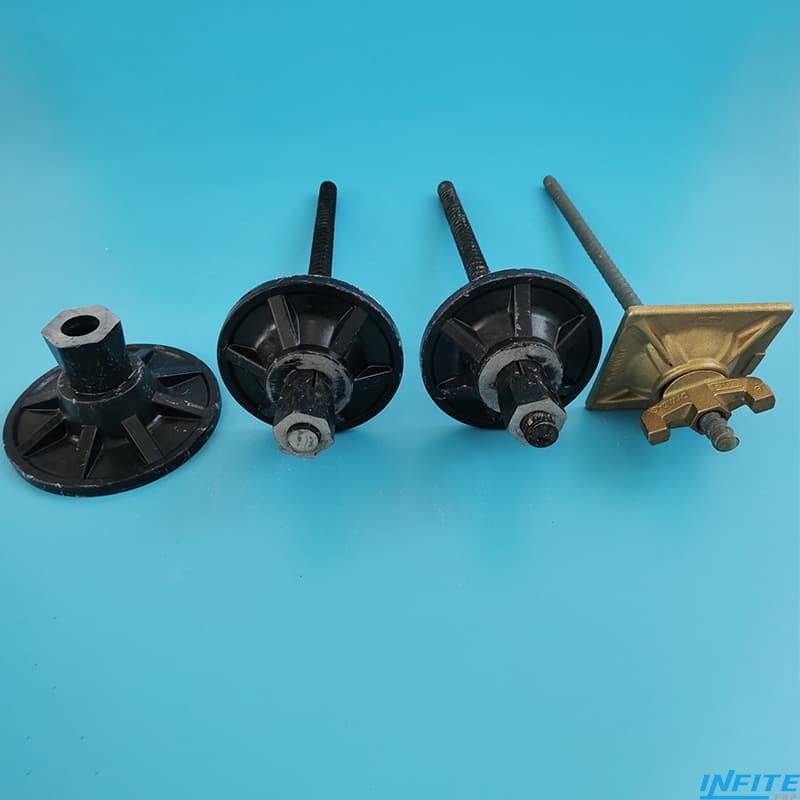

1. FRP tray nuts are generally pressed or molded, with good sealing performance and durability, and generally do not need to be coated with anti-corrosion paint;

2. Corrosion resistance, light weight, high tensile strength, easy maintenance and long service life;

3. Flame retardant, non-conductive and heat-insulating, easy to cut;

4. Widely used in equipment and pipeline systems in shipbuilding, automobile, chemical industry, electric power and other industries, especially when used in harsh environments such as humidity and corrosion, it has better performance advantages;

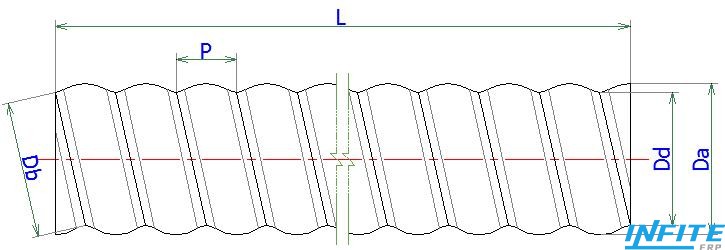

Product Specificatin
Specification	yft100-18	Name	GFRP Rockbolt

Item	Unit	Permissible Deviation	Standard Parameter
Outer Diameter (Da)	mm	±0.5	18
Measure Bottom Diameter (Db)	mm	±0.5	15.8
Effective Diameter (Dd)	mm	±0.5	15
Screw Pitch (P)	mm	±0.2	10
Rod Length (L)	mm	±10
Active Section	mm²	—	177
Weight	g/m	±15	445
Fiberglass Content	%	±5	80
Density	g/cm³	±0.1	2
Ultimate Load-bearing	kN	≥	154
Ultimate Tensile Strength	MPa	≥	870
Shear Strength	MPa	≥	150
Elastic Modulus	GPa	≥	40
Ultimate Strain	%	≥	1.2
torsional strength	N·m	≥	40
Nut bearing capacity	kN	≥	60
